The Editor's Guide to Beaded Pool Liners: Decoding Bead Types for a Perfect Fit
Selecting a replacement vinyl liner for an above ground pool is one of the most impactful decisions a homeowner can make. It dictates not only the aesthetic of the pool but also its long-term structural integrity. While patterns and thickness are critical factors, the most crucial specification is the liner's hanging style—specifically, how it attaches to the pool wall. This single detail determines compatibility. The two primary attachment methods are Overlap and Beaded, and understanding the difference is the first step toward a successful installation.
Overlap vs. Beaded: The Fundamental Divide
The most basic installation style is the Overlap liner. As its name implies, this type of liner is draped over the pool's structural wall, with the excess material hanging on the outside. It is secured in place by plastic strips called "coping," which snap over the liner and the wall, holding it tight before the top rails are reinstalled. While functional, achieving a perfectly even and taut fit with an overlap liner can be challenging for a novice installer, sometimes resulting in uneven patterns along the waterline.
A Beaded pool liner represents a more tailored approach. These liners feature a thick, specially shaped vinyl edge, known as a "bead," that runs along the entire top perimeter. This bead is designed to snap securely into a corresponding track, or "bead receiver," that is installed on the top of the pool wall. This system ensures a uniform, precise fit every time, creating a sharp, professional-looking water line. For pools equipped with a bead receiver, a beaded liner is the required choice.
A Comprehensive Breakdown of Liner Bead Types
The term "beaded" is not a one-size-fits-all description. Several distinct bead profiles exist, ranging from universal designs to highly proprietary shapes exclusive to specific pool manufacturers. Identifying your pool's required bead is non-negotiable for a successful liner replacement.
Standard Bead
The Standard Bead is the original and most straightforward beaded design. It features a small, roundish profile designed to snap into a standard, C-shaped bead receiver track. While effective, it offers no installation flexibility; it can only be used in pools explicitly equipped with the correct receiver. If your track is damaged or you wish to convert from an overlap liner, a new bead receiver must be installed around the entire pool perimeter.
Unibead (J-Hook)
The Unibead, often called a J-Hook or V-Bead, is a highly versatile and popular option. Its key feature is a dual-purpose design:
- As a J-Hook: In its original form, the Unibead has a thick, hook-shaped top that can be hung directly on the pool wall, similar to an overlap liner but without the excess material or need for coping strips. This is an ideal solution for converting an overlap pool to a beaded system without installing a bead receiver.
- As a Standard Bead: The J-Hook portion of the bead is attached via a perforated seam. By carefully tearing this strip away, you are left with a Standard Bead that can be snapped into a traditional bead receiver track.
This inherent flexibility makes the Unibead a dominant choice among the various above ground pool liners available, as it accommodates multiple installation scenarios.
EZ Bead (Multi-Bead)
The EZ Bead, or Multi-Bead, builds upon the versatility of the Unibead. It combines both a Standard Bead profile and a J-Hook into a single, robust bead without a tear-off strip. This clever design allows the liner to be installed either by hooking it over the pool wall or by inserting the lower portion of the bead into a standard receiver track. It eliminates the step of removing a perforated strip and provides a universal fit for most standard applications, simplifying the selection process for homeowners.
Proprietary Beaded Liner Systems
Many legacy and high-end pool manufacturers developed unique bead and track systems to differentiate their products. These proprietary designs are not interchangeable with standard beads, and ordering the correct liner is absolutely critical.
Kayak® Beaded Pool Liners
Kayak pools, and the related Fanta-Sea brand, utilize a very distinct, rectangular bead. This bead is designed to slide into a specific, flat, two-part track system. A standard, Unibead, or EZ Bead liner simply will not fit into a Kayak track. You must source a liner specifically designated as having a Kayak bead.
Aqua Leader® Beaded Pool Liners
Aqua Leader pools are known for their robust resin components, including a proprietary bead track system. The Aqua Leader bead has a unique profile engineered to lock into their specific receivers. Attempting to force a different bead type can result in a loose fit, water leakage behind the liner, and eventual liner failure.
Esther Williams® & Johnny Weissmuller® Pool Liners
These classic pool brands often feature a unique bead that is larger and more robust than a standard bead. It's designed to fit snugly into the corresponding track built for these famously durable pools. When replacing a liner in an Esther Williams or Johnny Weissmuller pool, confirming the specific bead requirement is a necessary step.
Wilkes® & Gibraltar® Pool Liners
Wilkes and Gibraltar pools, often designed for on-ground or semi-inground installation with surrounding decks, use a specific bead that fits into a track integrated directly into their rectangular coping pieces. The fit is precise and integral to the pool's structure. When you order replacement Wilkes pool liners, you must ensure it is manufactured with this exact bead profile.
EZ Panel® Pool Liners
Commonly found on older rectangular pools, the EZ Panel system uses a small, specific bead that mates with a metal track often built directly onto the top edge of the wall panels. This system is less common today, but for owners of these pools, sourcing a liner with the correct EZ Panel bead is essential.

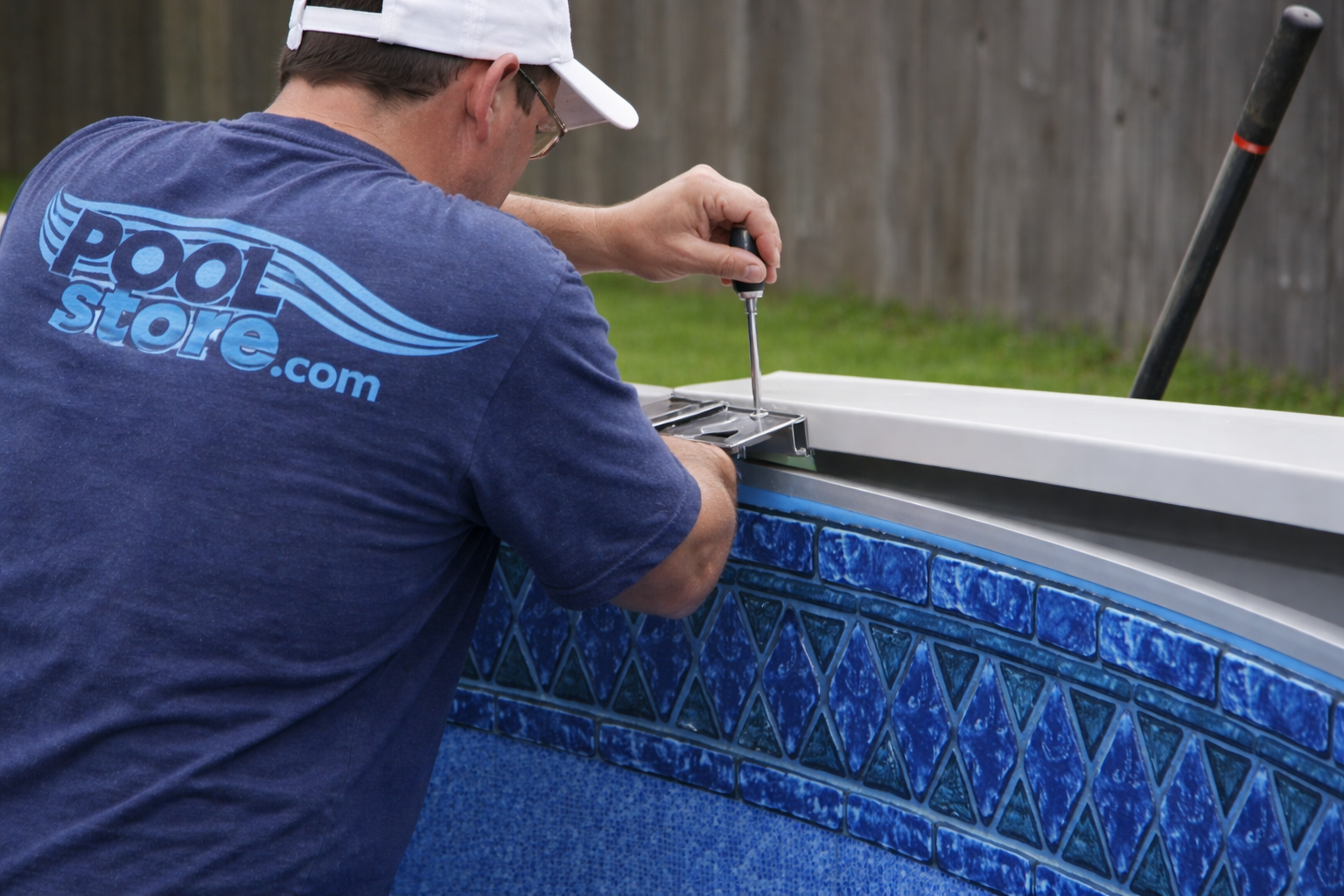

Before purchasing your next liner, take the time to identify your system correctly. If possible, remove a top rail to expose the bead and bead receiver. Taking a clear photo can eliminate guesswork and ensure you purchase a liner that will provide a secure, watertight, and aesthetically pleasing finish for years to come.
